PRAX PRAX C prodotti pistoncini e pressori GAMM 1

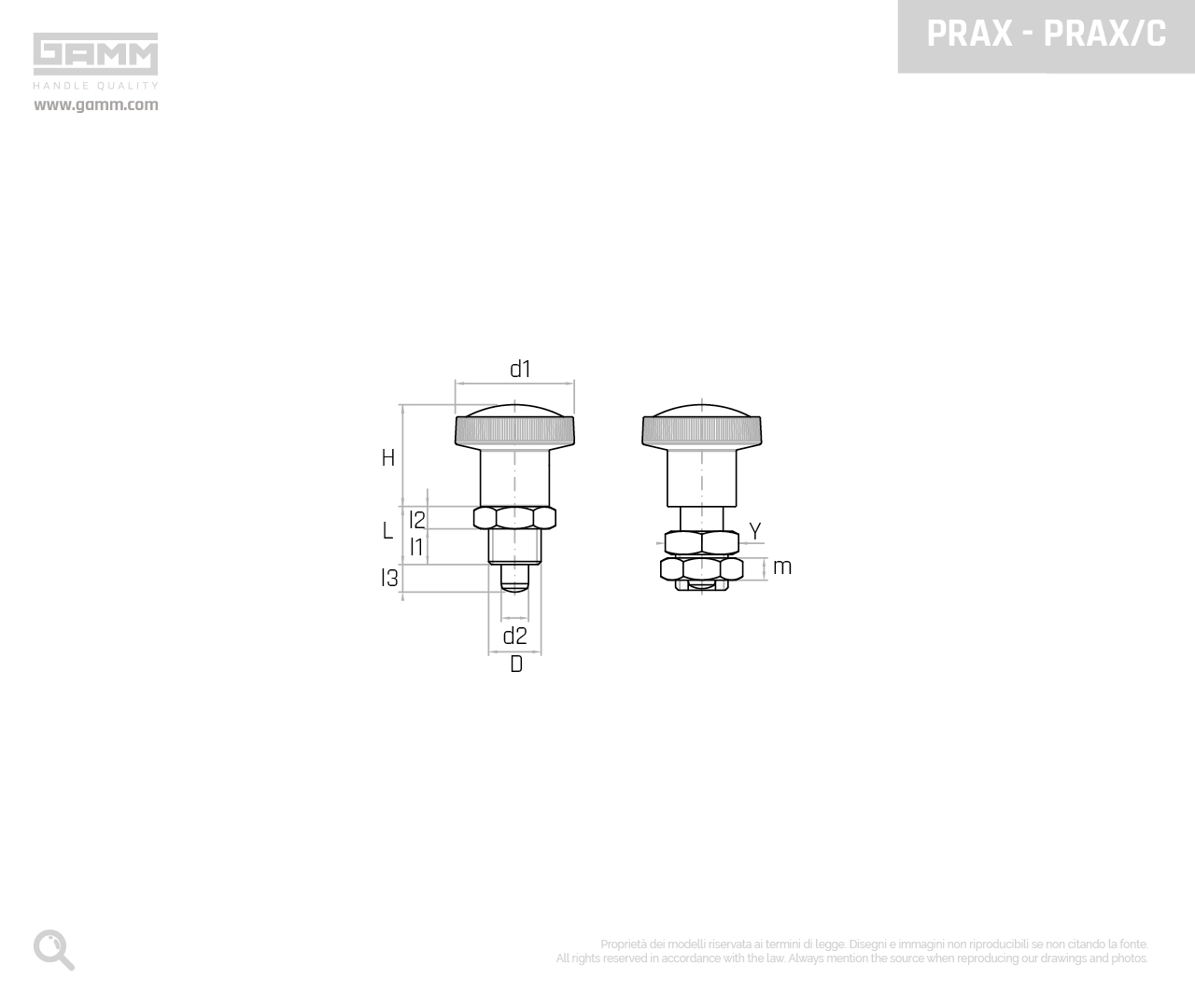

PRAX PRAX C disegno pistoncini e pressori GAMM 1

Technical table

CodiceModellod1
mm		H
mm		DL
mm		l1
mm		l2
mm		l3
mm		d2
mm		Y
mm		m
mm		Peso
gr.		3D
6395812PRAX/262623M12x1,5151056616-30 3D
6395817PRAX/323228M16x1,5181268819-58 3D
6395813PRAX/26/C2623M12x1,5151056616639 3D
6395818PRAX/32/C3228M16x1,5181268819876 3D

NOTE:
C version with stainless steel locking nut (AISI 303).

Download special holes table

Request a quote

Select the model, add it to the list of products to be quoted and send the request to receive a personalized quotation as soon as possible.

Product specifications

The AISI 303 threaded stainless steel body with locking position ensures a secure and stable assembly and the ability to lock the plunger in place. The AISI 303 stainless steel tip ensures high resistance to corrosion and wear. The knurled handwheel in black glass-fiber-reinforced thermoplastic offers a secure and comfortable grip.
Spring plunger. AISI 303 stainless steel threaded body, with locking position. AISI 303 stainless steel pin.
The PRA/X spring plunger is a precision component designed for applications requiring precise thrust, corrosion resistance, and secure locking. Made with a threaded AISI 303 stainless steel body with a locking position and an AISI 303 stainless steel tip, it offers high durability in harsh environments.
Some examples of applications for the PRA/X spring plunger: Food industry machinery Medical equipment
