Technical table

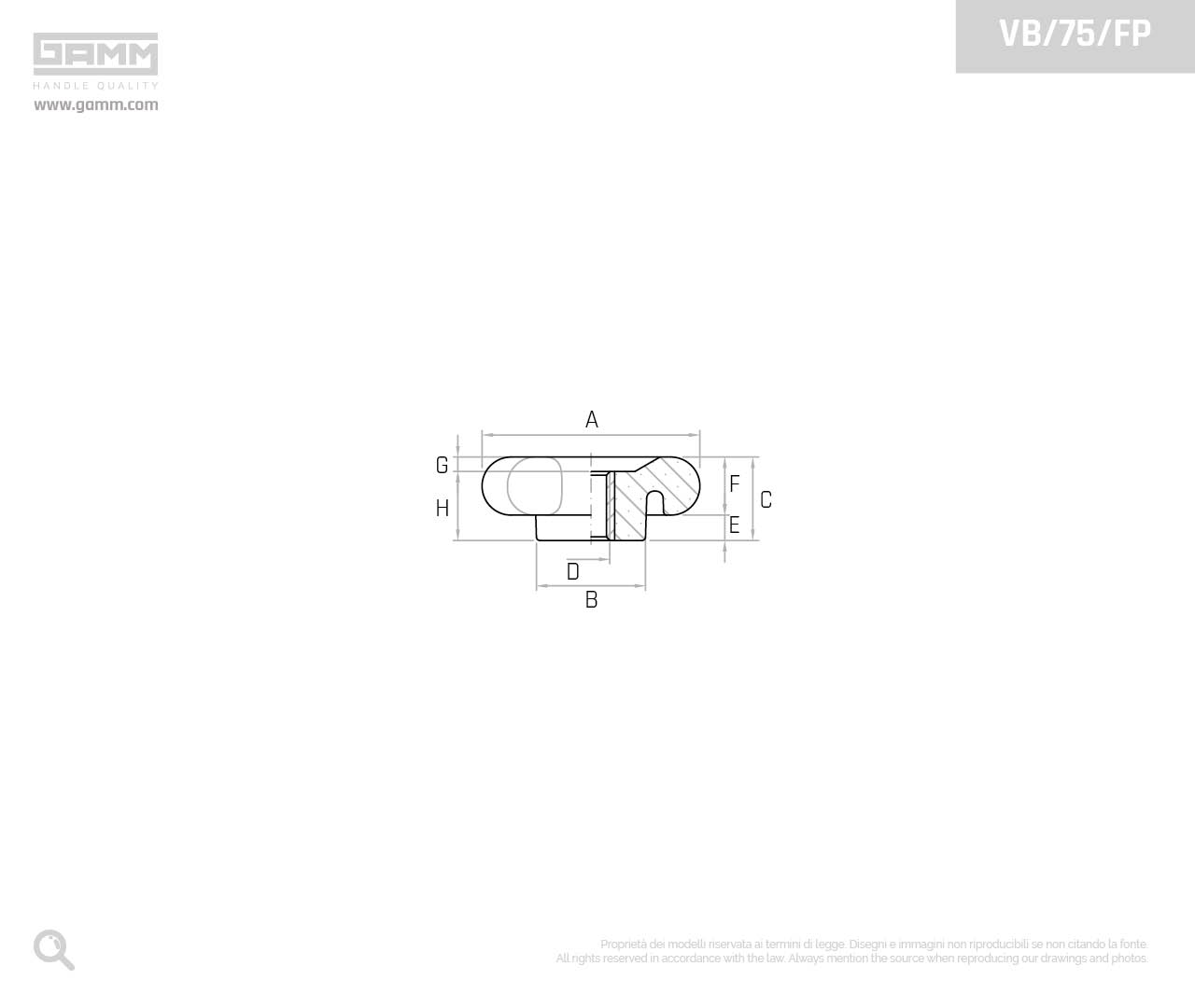

| Codice | Modello | A mm | C mm | B mm | D | H mm | G mm | E mm | F mm | Peso gr. | 3D |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 6119005 | VB/75/FP M10 | 75 | 28 | 34 | M10 | 21 | 7 | 8 | 20 | 90 | 3D |
NOTE:
For certain minimum quantities, tapped metal inserts available in brass, zinc plated steel or stainless steel upon request.
Request a quote
Select the model, add it to the list of products to be quoted and send the request to receive a personalized quotation as soon as possible.
Product specifications
The material in black Duroplast offers resistance to the impacts and durability, while the brass insert ensures a connection stable and reliable. The through thread allows a assembly flexible, making this knob a choice versatile for many applications. The design simple but effective ensures a use easy and secure.
Locking knob 5-lobe in black Duroplast with through threaded bush. The shaping wavy of the edge improves l'support of the fingers and ensures a grip stable, allowing a'action of tightening smooth and controlled also in presence of use frequent.
The knob VB/75/FP is the solution practical and durable for applications that require a locking quick and secure. Made in black Duroplast, is equipped with a brass insert with through threaded hole, ideal for different configurations of assembly.
Some application examples for VB/75/FP:
Systems of locking and tightening.
Applications technical on machinery.
Adjustments manual on equipment industrial.
