MZN prodotto volantini di bloccaggio GAMM

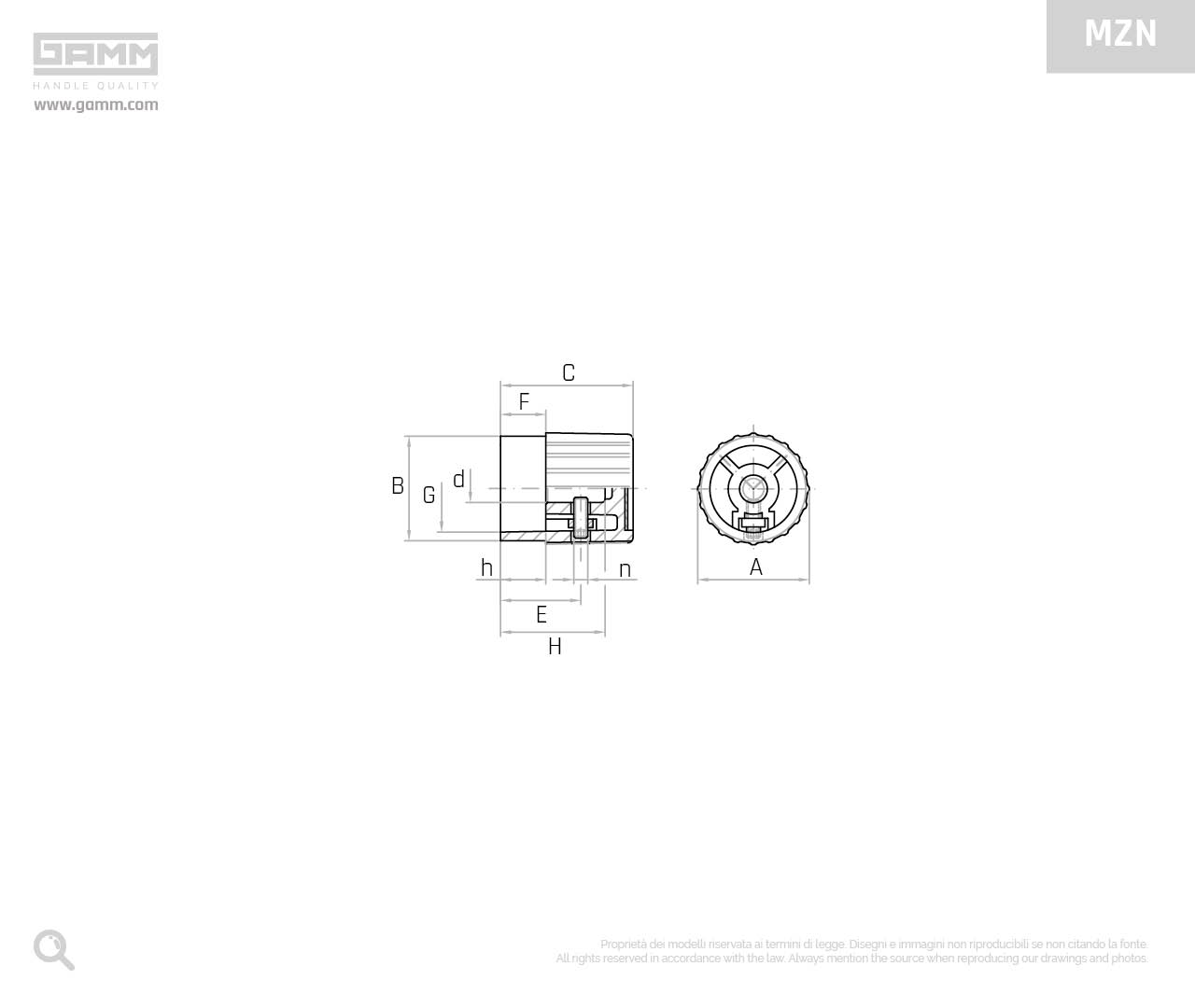

MZN disegno volantini di bloccaggio GAMM

Technical table

CodiceModelloA
mm		C
mm		B
mm		F
mm		G
mm		d
mm		H
mm		h
mm		E
mm		nPeso
gr.		3D
6350010MZN/272730251222Ø6251218M419 3D
6350020MZN/323238301325Ø8301323M422 3D
6350030MZN/353545331528Ø10371527M530 3D
6350040MZN/404052381733Ø1244,515,527M536,2 3D

NOTE:
For certain minimum quantities, available in different colours. The plain version of control knob model MZN is available with different graduation types.

Download special holes table

Request a quote

Select the model, add it to the list of products to be quoted and send the request to receive a personalized quotation as soon as possible.

Product specifications

Thanks to the thermoplastic reinforced, the MZN ensures high durability in the time and excellent resistance to wear and to the agents external. The set screw threaded in steel with hex socket head allows a assembly quick and secure, while the matte finish adds an aesthetic appearance modern. The design simple and functional makes the knob suitable for multiple needs operating.
Knurled knob in black thermoplastic with plain hole and threaded steel set screw, hex socket head. Aluminum disc.
The knurled knob MZN offers reliability and ease of use, with a functional design and robust. IS made in black thermoplastic glass fiber-reinforced, equipped with plain hole, threaded steel set screw and hex socket head.
Some application examples for MZN: Systems of tightening. Applications on laboratory equipment. Machinery for light industry.
