VB 17 P prodotto volantini di bloccaggio GAMM

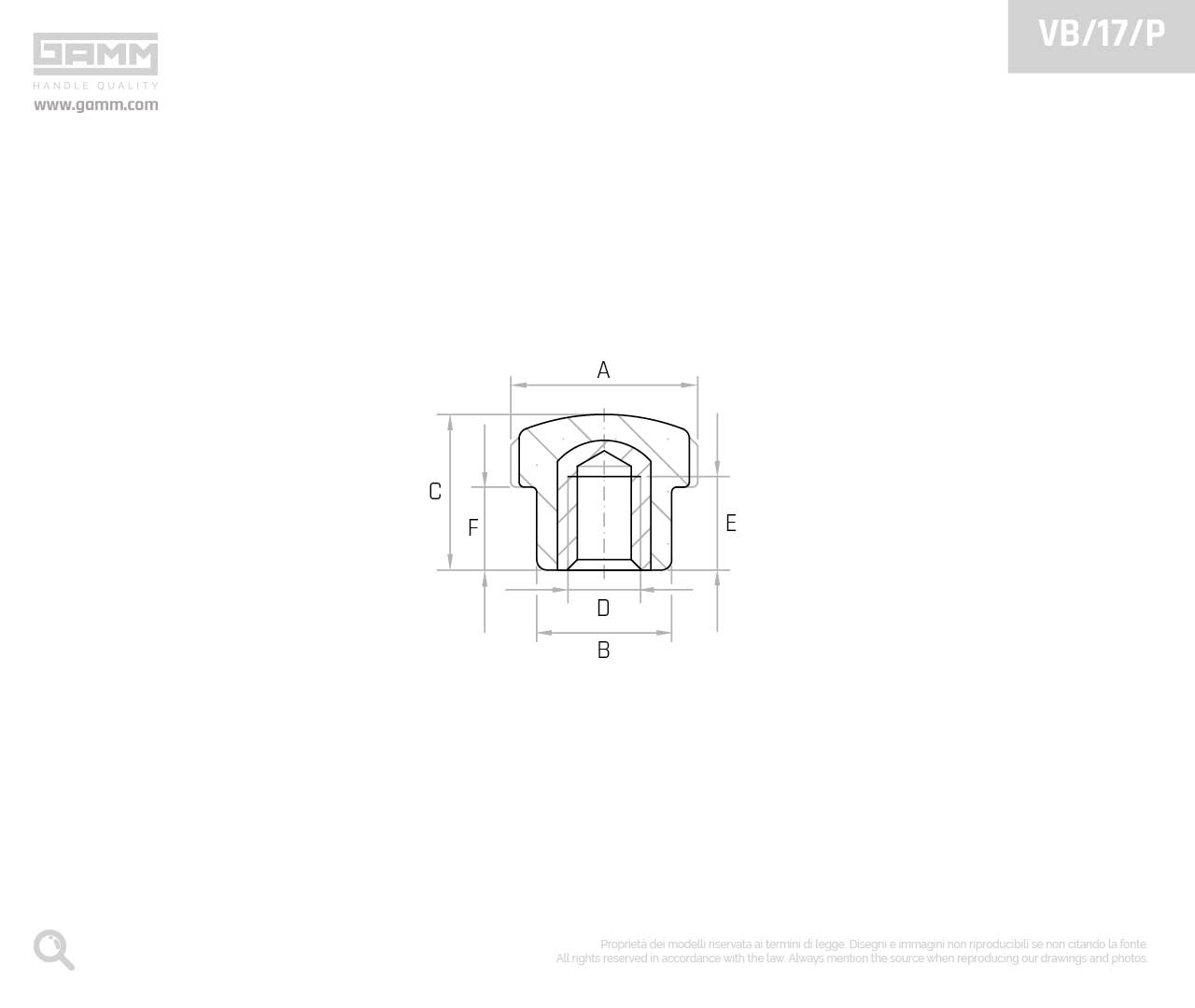

VB 17 P disegno volantini di bloccaggio GAMM

Technical table

CodiceModelloA
mm		B
mm		C
mm		DE
mm		F
mm		Peso
gr.		3D
6336000VB/17/P M4171315M4886 3D
6336005VB/17/P M5171315M5886 3D
6336010VB/17/P M6171315M6886 3D

NOTE:
For certain minimum quantities custom colors and tapped metal inserts available in brass, zinc plated steel or stainless steel upon request.

Download special holes table

Request a quote

Select the model, add it to the list of products to be quoted and send the request to receive a personalized quotation as soon as possible.

Product specifications

The brass insert ensures a resistance mechanical upper and resists also for stresses high. The blind threaded hole allows a connection secure and without losses, while the matte finish of the thermoplastic reinforced ensures a'excellent durability in the time.
Knurled knob with brass insert and blind threaded hole.
The knurled knob VB/17/P is made in black thermoplastic, a material that offers excellent features of resistance and durability. The brass insert with blind threaded hole ensures a connection stable, ideal for applications that require precision and reliability.
Some application examples for VB/17/P: Systems of locking in applications mechanical. Assemblies of components with threads cieche. Use in environments industrial and technical.
