VP 17 P prodotto volantini di bloccaggio GAMM

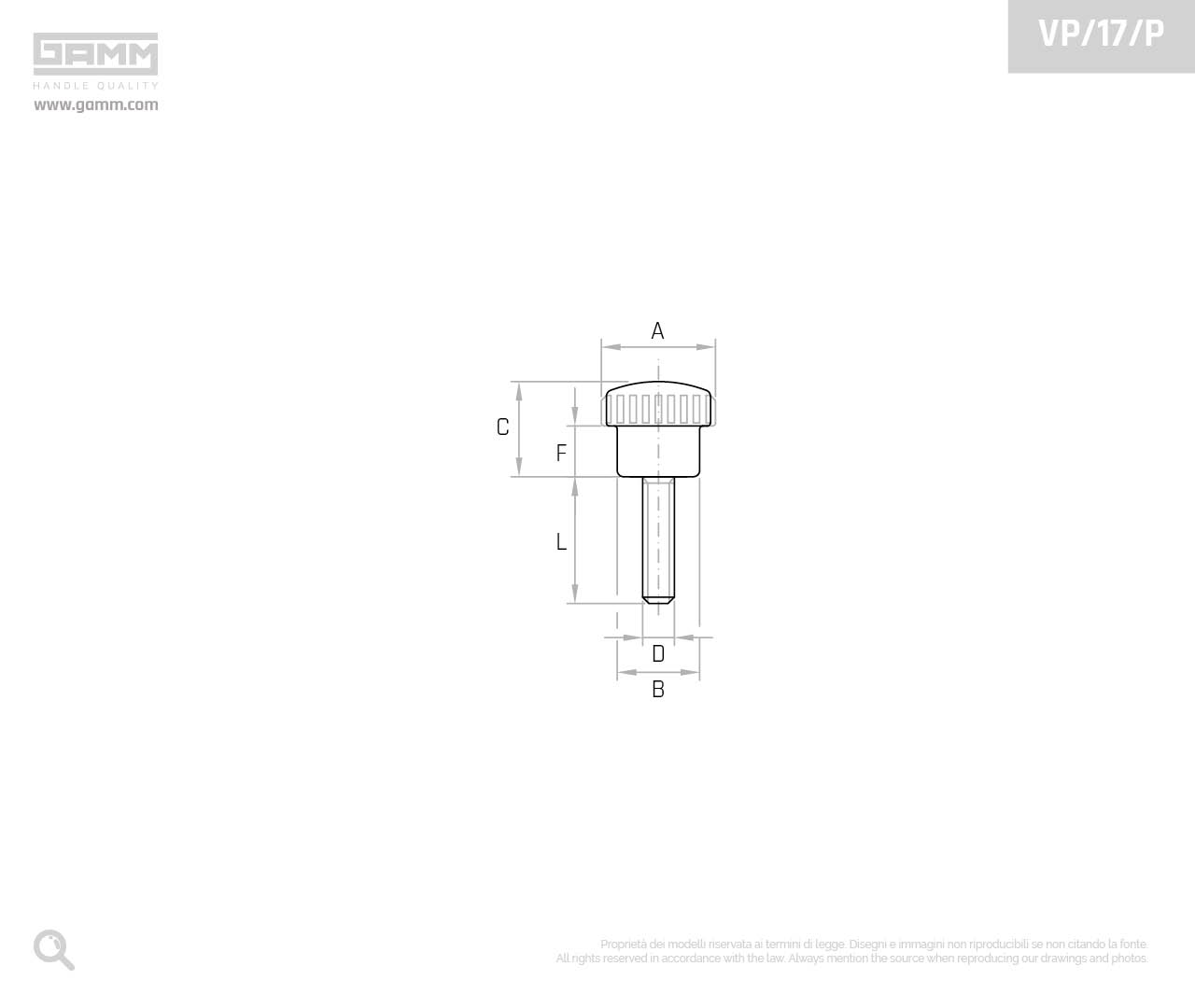

VP 17 P disegno volantini di bloccaggio GAMM

Technical table

CodiceModelloA
mm		B
mm		C
mm		DF
mm		L
mm		Peso
gr.		3D
6341010VP/17/P M4x10171315M48104 3D
6341030VP/17/P M4x25171315M48255 3D
6341050VP/17/P M5x10171315M58105 3D
6341060VP/17/P M5x15171315M58156 3D

NOTE:
For certain minimum quantities custom colors and threaded metal studs available in brass, zinc plated steel or stainless steel upon request.

Download special holes table

Request a quote

Select the model, add it to the list of products to be quoted and send the request to receive a personalized quotation as soon as possible.

Product specifications

Thanks to the robustness of the'zinc-plated steel, the knurled knob VP/17/P is perfect for use in environments that require resistance to the agents weather. The thread well defined ensures a excellent coupling with the components, while the matte finish of the thermoplastic glass fiber-reinforced ensures a excellent grip.
Knurled knob with threaded zinc-plated steel stud.
The knob VP/17/P is made in zinc-plated steel, ensuring excellent resistance to the corrosion and a'high durability in the time. The thread allows a locking precise and secure, making it ideal for a wide range of industrial applications and mechanical.
Some application examples for VP/17/P: Assemblies and fastenings on systems industrial. Systems of locking on equipment and machinery. Fastenings in environments external and in conditions of exposure to the agents weather.
