VPC prodotto volantini di bloccaggio GAMM

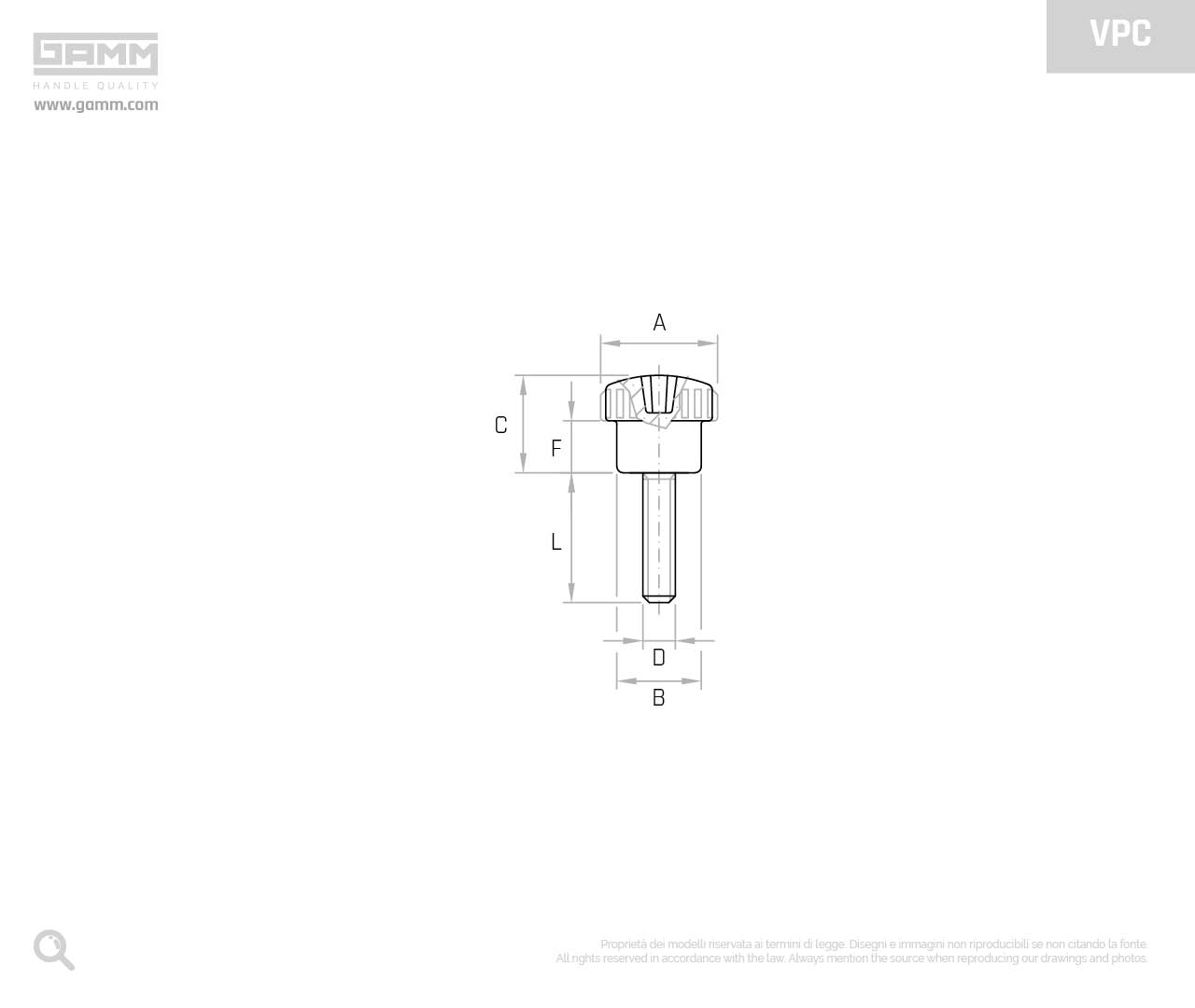

VPC disegno volantini di bloccaggio GAMM

Technical table

CodiceModelloA
mm		B
mm		C
mm		DF
mm		L
mm		Peso
gr.		3D
6334010VPC/17 M5x15171315M58159 3D
6334015VPC/17 M5x20171315M58209 3D

NOTE:
For certain minimum quantitie, custom colors and threaded metal studs available in brass, zinc plated steel or stainless steel upon request.

Download special holes table

Request a quote

Select the model, add it to the list of products to be quoted and send the request to receive a personalized quotation as soon as possible.

Product specifications

Made in thermoplastic reinforced, the knurled knob VPC offers excellent mechanical and impact resistance. The through threaded hole allows quick and safe assembly, while the matte finish ensures a long durability and an optimal aesthetic appearance.
Knurled knob with threaded zinc-plated steel stud and head for cross.
The VPC is a knurled knob in black thermoplastic glass fiber-reinforced, designed for industrial applications that require precision and reliability. The through threaded hole allows a connection secure with a wide gamma of components.
Some application examples for VPC: Assembly on industrial machinery. Locking systems on metal structures. Use in applications where is required a through threaded connection.

Similar products

  • GAMM icona best product
    VB pieno prodotto volantini di bloccaggio GAMM

    VB

    Six-lobe knob

    Black Duroplast.

    Locking knob 6-lobe in black Duroplast with brass insert and blind threaded hole with solid underhead.

  • GAMM icona best product
    VB vuoto prodotto volantini di bloccaggio GAMM

    VB

    Six-lobe knob

    Black Duroplast.

    Locking knob 6-lobe in black Duroplast with brass insert and blind threaded hole.

  • GAMM icona best product
    VB FP pieno prodotto volantini di bloccaggio GAMM

    VB/FP

    Six-lobe knob

    Black Duroplast.

    Locking knob 6-lobe with brass insert and through threaded hole and solid underhead.

  • GAMM icona best product
    VB FP vuoto prodotto volantini di bloccaggio GAMM

    VB/FP

    Six-lobe knob

    Black Duroplast.

    Locking knob 6-lobe in black Duroplast with brass insert and through threaded hole.
