VB/PFP
Knurled knob
Black thermoplastic.
Knurled knob with brass insert and through threaded hole in black thermoplastic.
VP/P
Knurled knob
Black thermoplastic.
Knurled knob in zinc-plated steel with threaded zinc-plated steel stud.
VM
Six-lobe knob
Black Duroplast.
Knob 6-lobe in black Duroplast with brass insert protruding and blind threaded hole. Available in color black and red.
VEP
Six-lobe knob
Black thermoplastic, matte finish.
Knob 6-lobe in black thermoplastic with threaded zinc-plated steel stud.
VSB
Six-lobe knob
Black thermoplastic, glass fiber-reinforced, matte finish.
Knob 6-lobe with brass insert and blind threaded hole.
VSB/FP
Six-lobe knob
Black thermoplastic, glass fiber-reinforced, matte finish.
Knob 6-lobe with brass insert and through threaded hole.
VSP
Six-lobe knob
Black thermoplastic, glass fiber-reinforced, matte finish.
Perno in zinc-plated steel threaded.
VPC
Knurled knob
Black thermoplastic, glass fiber-reinforced, matte finish.
Knurled knob with threaded zinc-plated steel stud and head for cross.
VB/17/P
Knurled knob
Black thermoplastic, glass fiber-reinforced, matte finish.
Knurled knob with brass insert and blind threaded hole.
VP/17/P
Knurled knob
Black thermoplastic, glass fiber-reinforced, matte finish.
Knurled knob with threaded zinc-plated steel stud.
LMA
Six-lobe knob
Black thermoplastic, glass fiber-reinforced, matte finish.
Locking knob 6-lobe in black thermoplastic with flush hub in zinc-plated steel. The head for six lobes regular offers a wide surface of grip, improving the control and the distribution of the force during the tightening. The hub metallico for visible ensures robustness and stability, making the knob suitable for uses frequent and applications that require reliability.

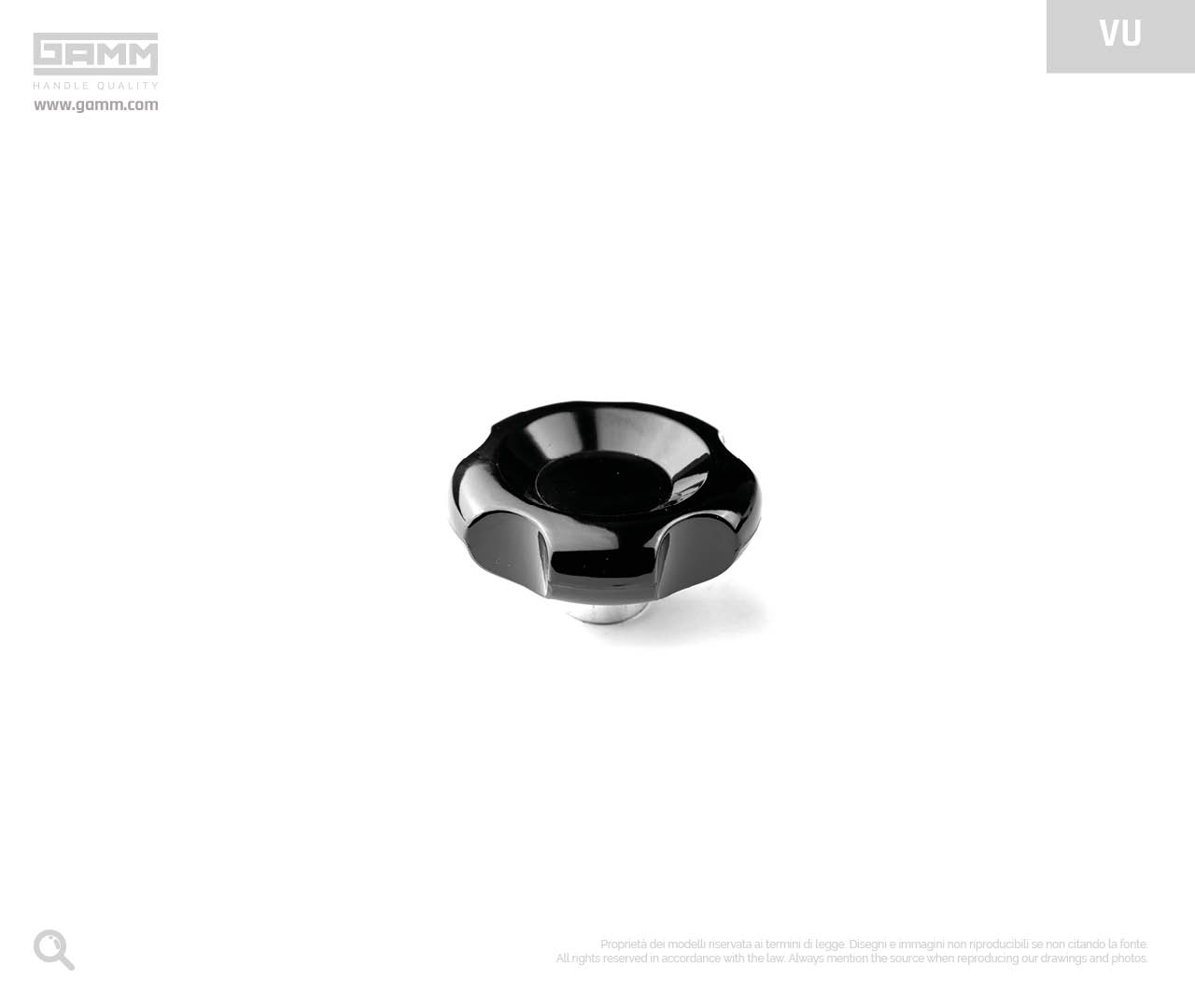

VU
Five-lobe knob
Black Duroplast.
Locking knob 5-lobe in black Duroplast with protruding hub in zinc-plated steel. The head shaped features surfaces blended and lobes pronounced that facilitate the grip, while the hub metallico in highlighted ensures robustness structural and facilitates l'coupling during the tightening manual.
Locking handwheels: safety is a matter of detail
APPLICATIONS: industrial machinery, plumbing, work and sports equipment, sanitary fittings, boilers, stoves, tents and tensile structures
The locking handwheels allow you to tighten and secure any type of mechanism or apparatus easily and quickly and in the most varied sectors, from agriculture to plumbing to medical.
Thanks to the optimized ergonomic design and the use of the highest quality materials, our models of locking handwheels find many applications, falling within the safety equipment of industrial plants, sports equipment, thermal power stations, medical devices and instruments, tents and mobile structures.
Types of handwheel by material
THERMOPLASTIC locking handwheels: great versatility, they adapt perfectly to any use thanks to the characteristics of the polymer reinforced with fiberglass; matte sandblasted finish (MAT).
BAKELITE locking handwheels: mechanical performance and heat resistance much higher than standard thermoplastic; glossy finish.
ALUMINIUM locking handwheels: mix of high performance and superior aesthetics, designed for heavy handling.
Standard dimensions available for immediate delivery
> Thermoplastic handwheels: diameter from 15 to 100 mm
> Bakelite handwheels: diameter from 20 to 110 mm
> Aluminium handwheels: diameter from 40 to 80 mm
Custom locking handwheels
By Dimension
Depending on the specific needs, we can make the same items with different materials for the inserts (galvanized or stainless for the male, brass or stainless for the female), customizing both the length and the diameter of the pin.
By color
All our thermoplastic locking handwheels are available in the RAL colours shown in the table for each product or in other shades on request.
