GB 30 prodotto volantini di bloccaggio GAMM

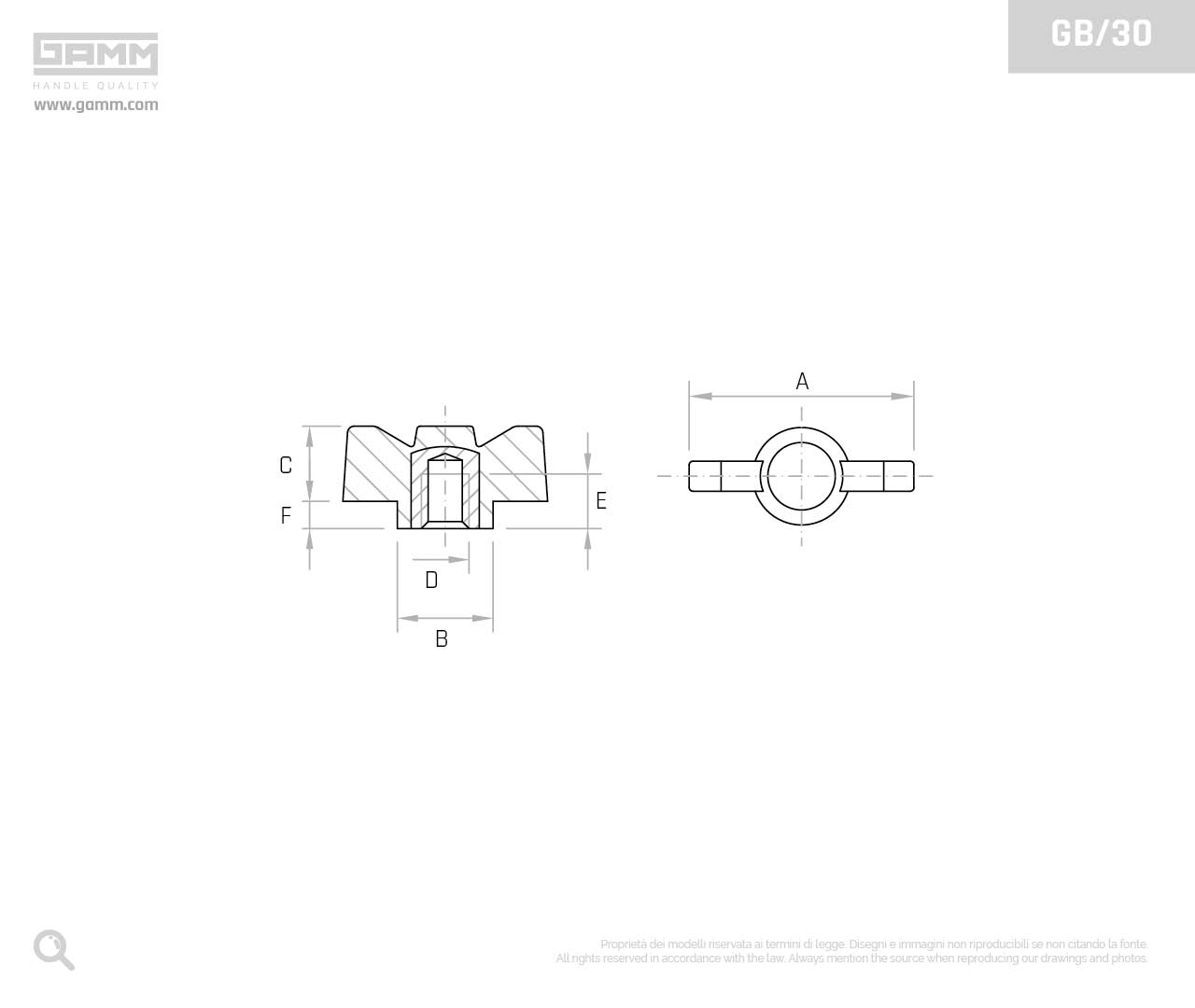

GB 30 disegno volantini di bloccaggio GAMM

Technical table

CodiceModelloA
mm		B
mm		C
mm		E
mm		F
mm		DPeso
gr.		3D
7318005GB/30 M430131194M45 3D
7318010GB/30 M530131194M55 3D
7318015GB/30 M630131194M65 3D
7318020GB/30 M830131194M86 3D

NOTE:
For certain minimum quantities custom colors and tapped metal inserts available in brass, zinc plated steel or stainless steel upon request.

Download special holes table

Request a quote

Select the model, add it to the list of products to be quoted and send the request to receive a personalized quotation as soon as possible.

Product specifications

GB/30 is made in thermoplastic glass fiber-reinforced, a material durable and lightweight. The blind threaded hole allows precise and secure assembly, preventing screw pull-out. Its compact shape and functional design make it suitable for variety of applications.
Locking knob in black thermoplastic with brass insert and blind threaded hole. The head features a shape compact with two wings opposed for profile square, designed to ensure a grip stable and a control precise during the operation. The body central, slightly shaped, improves l'ergonomics and promotes a distribution uniform of the stresses on the point of locking.
The knob GB/30 is a component robust and versatile, ideal for applications that require resistance and reliability. The brass insert with blind threaded hole offers excellent resistance to wear and to the agents chemical, ensuring a locking secure and stable. The head features a shape compact with two wings opposed for profile defined, that ensure a grip stable and a operation precise during the tightening manual.
Some application examples for the locking knob GB/30: Fastening of elements on panels and structures Assembly of mechanical components Creation of supports and guides Use in industrial machinery and equipment
