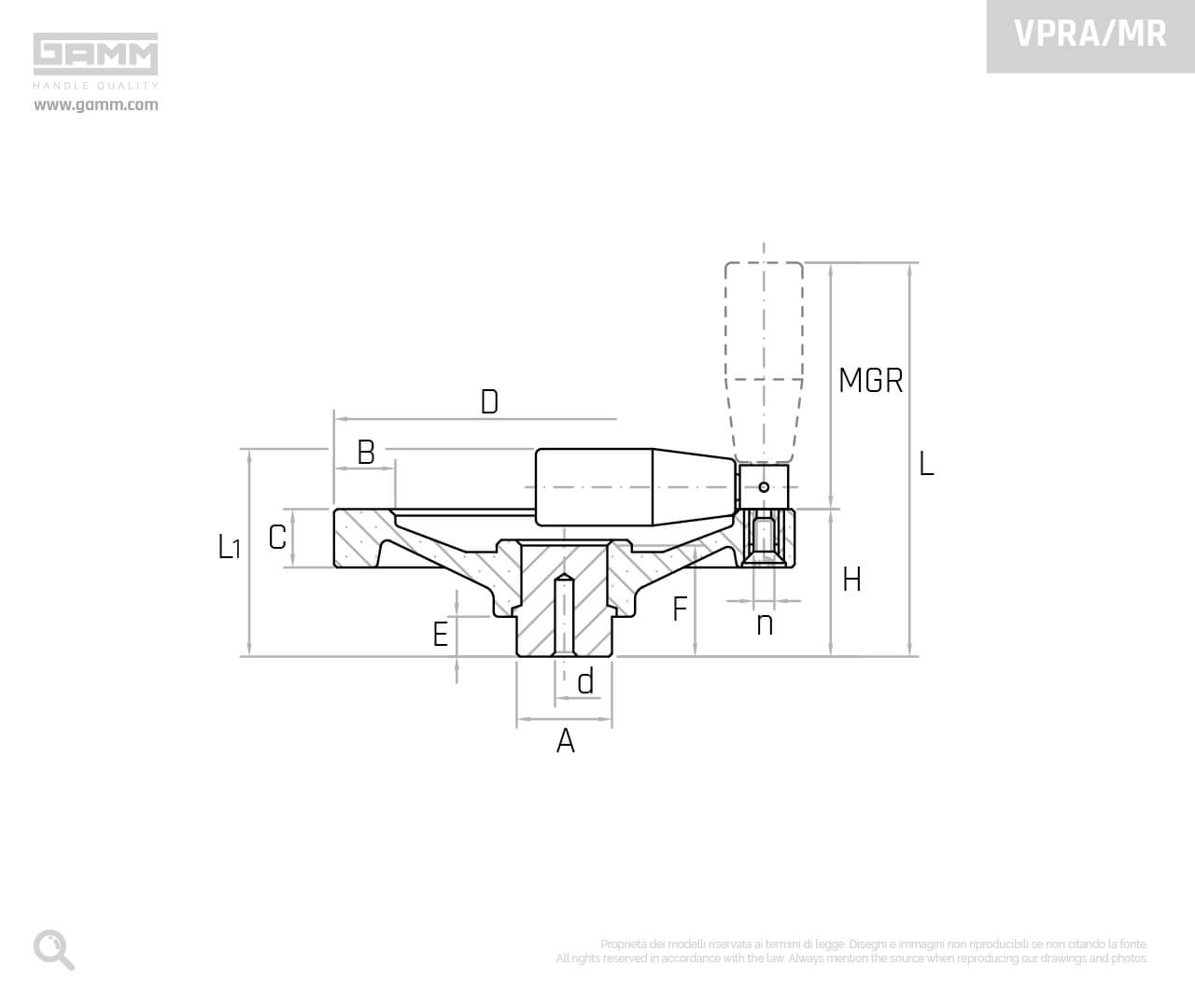

Technical table
| Cod. | Modello | D mm | H mm | L mm | L1 mm | C mm | B mm | A mm | d mm | E mm | F mm | MGR mm | n | Peso gr | 3D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 7117000 | VPRA/100-MR | 100 | 35 | 102 | 54 | 14 | 16 | 24 | Ø4 | 11 | 29 | 21x50 | M5 | 262 | 3D |
| 7117006 | VPRA/125-MR | 125 | 44 | 116 | 64 | 16 | 18 | 32 | Ø6 | 13 | 35 | 23x55 | M5 | 435 | 3D |
| 7117011 | VPRA/150-MR | 150 | 48 | 130 | 69 | 18 | 20 | 32 | Ø6 | 13 | 37 | 25x65 | M6 | 585 | 3D |
| 7117016 | VPRA/200-MR | 200 | 58 | 163 | 82 | 21 | 24 | 40 | Ø6 | 16 | 44 | 28x85 | M6 | 1040 | 3D |
| 7117021 | VPRA/250-MR | 250 | 66 | 171 | 90 | 22 | 30 | 48 | Ø6 | 17 | 49 | 28x85 | M6 | 1682 | 3D |
| 7117026 | VPRA/300-MR | 300 | 76 | 181 | 100 | 24 | 35 | 58 | Ø6 | 18 | 55 | 28x85 | M6 | 2913 | 3D |
NOTE:
Special inch and metric bores, keyways, set screw holes, ect. available upon request.
Request a quote
Select the model, add it to the list of products to be quoted and send the request to receive a personalized quotation as soon as possible.
Product specifications
The VPRA/MR offers a snap-action foldable rotating knob that allows for optimal space management and easy operation. The galvanized steel material ensures resistance and durability in demanding industrial environments.
Galvanized steel hub on top. Flip-up rotary knob.
The VPRA/MR hub, with its snap-action foldable rotating knob, is ideal for industrial environments requiring advanced functionality and resistance.
Here are some examples of application fields for the VPRA/MR hub:
Industrial machinery
Agricultural machinery
Hydraulics
