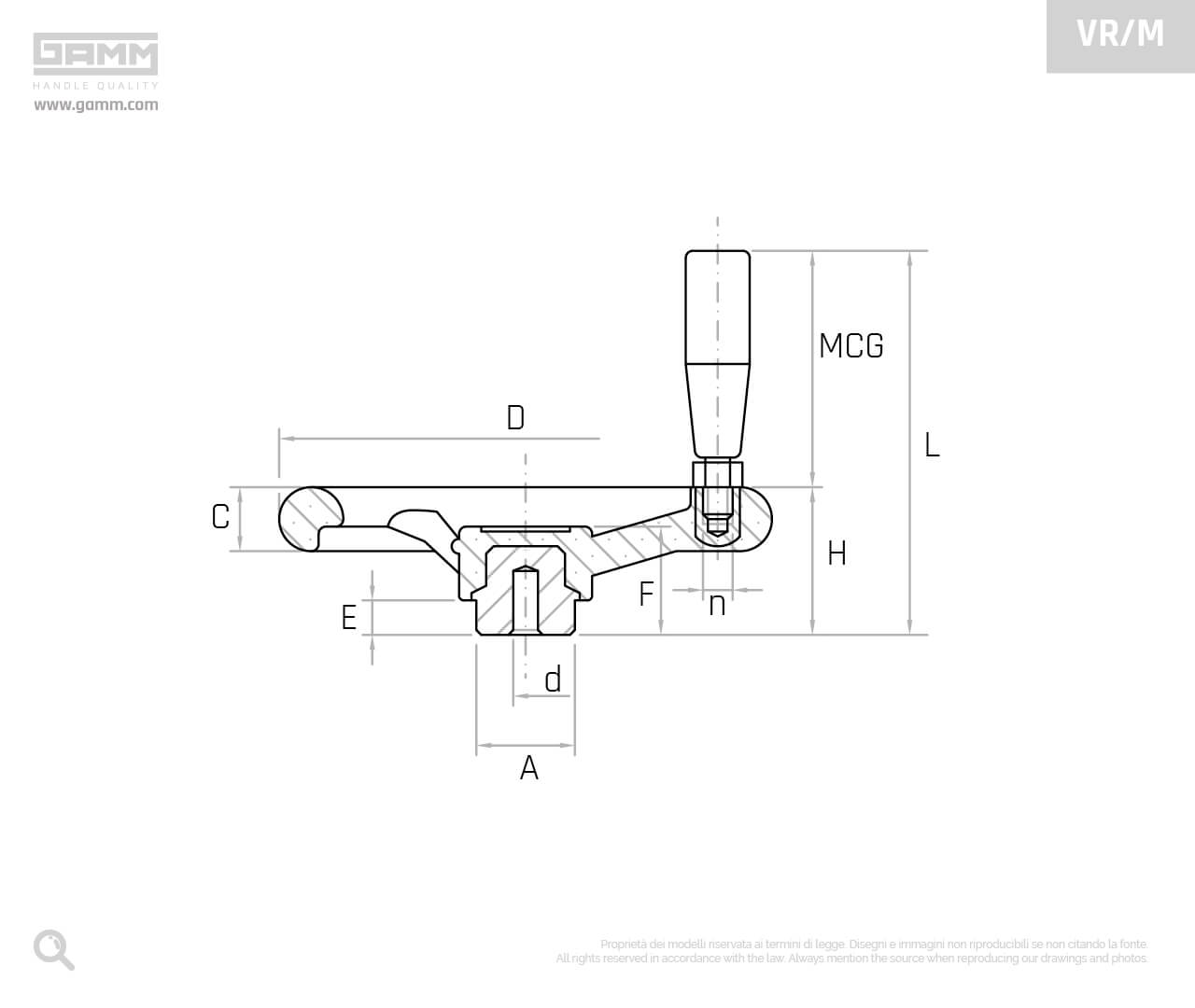

| Cod. | Modello | D mm | H mm | L mm | C mm | A mm | d mm | E mm | F mm | MCG mm | n | Peso gr | 3D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6103005 | VR/100-M | 100 | 40 | 85 | 15 | 24 | Ø4 | 11 | 34 | 17x40 | M8 | 189 | 3D |
| 6103010 | VR/125-M | 125 | 46 | 107 | 17 | 24 | Ø6 | 13 | 37 | 23x55 | M8 | 300 | 3D |
| 6103015 | VR/150-M | 150 | 49 | 120 | 20 | 32 | Ø6 | 13 | 38 | 25x65 | M10 | 470 | 3D |
| 6103020 | VR/175-M | 175 | 56 | 127 | 22 | 40 | Ø6 | 16 | 42 | 25x65 | M10 | 695 | 3D |
| 6103025 | VR/200-M | 200 | 61 | 153 | 24 | 40 | Ø6 | 16 | 45 | 28x85 | M10 | 880 | 3D |
| 6103030 | VR/250-M | 250 | 72 | 164 | 28 | 48 | Ø8 | 17 | 50 | 28x85 | M10 | 1335 | 3D |
| 6103035 | VR/300-M | 300 | 78 | 170 | 34 | 58 | Ø8 | 18 | 56 | 28x85 | M10 | 2165 | 3D |
NOTE:

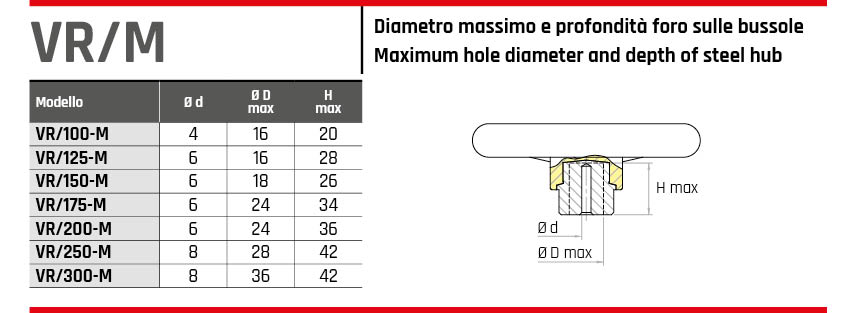

Special inch and metric bores, keyways, set screw holes, ect. available upon request.
