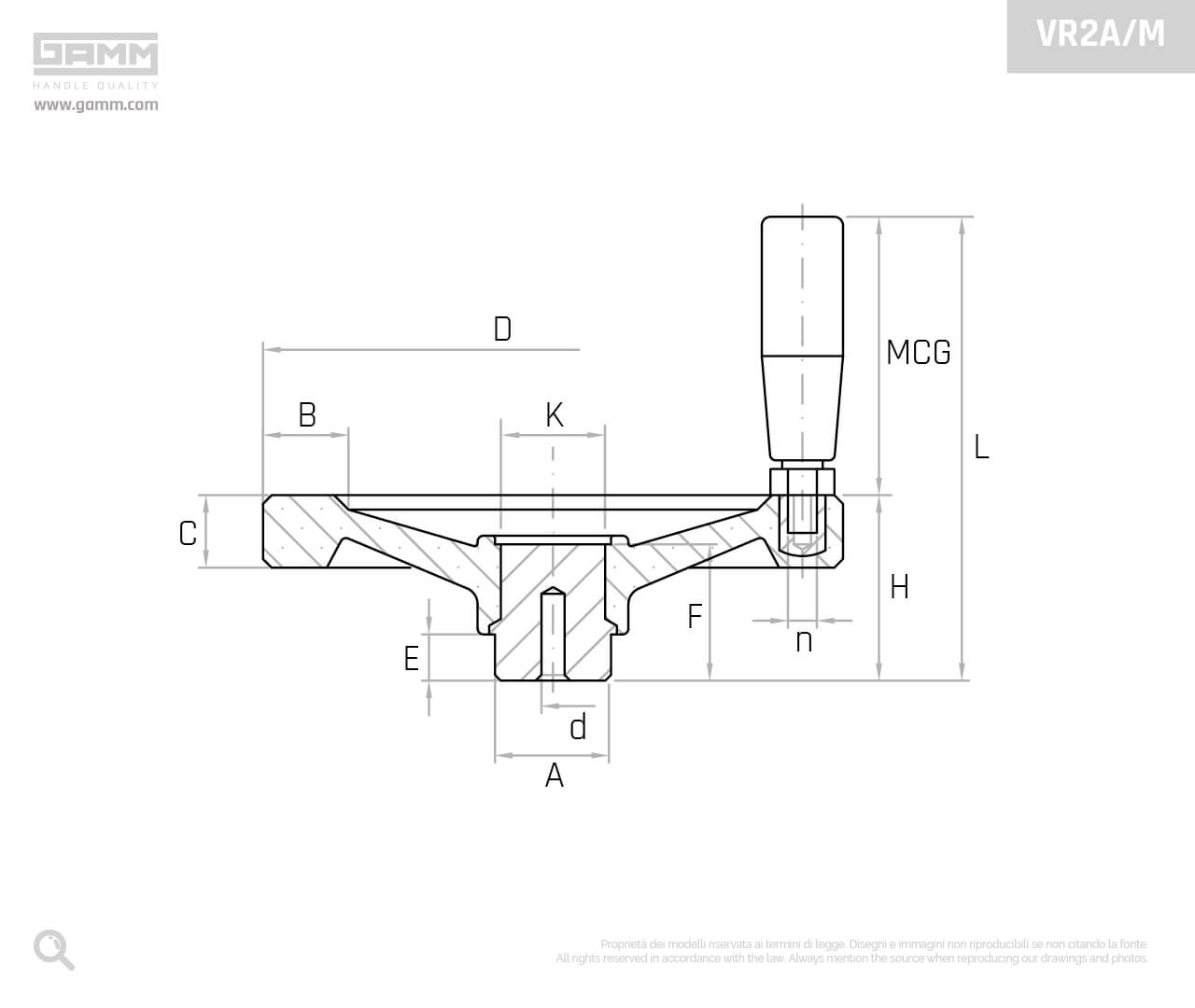

| Cod. | Modello | D mm | H mm | L mm | C mm | B mm | A mm | d mm | K mm | E mm | F mm | MCG mm | N | Peso gr | 3D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6108005 | VR2A/100-M | 100 | 36 | 81 | 14 | 15 | 24 | Ø4 | 19 | 11 | 29 | 17x40 | M8 | 210 | 3D |
| 6108007 | VR2A/125-M | 125 | 41 | 102 | 16 | 18 | 24 | Ø4 | 20 | 11 | 33 | 23x55 | M8 | 327 | 3D |
| 6108010 | VR2A/150-M | 150 | 46 | 117 | 20 | 21 | 32 | Ø6 | 28 | 13 | 37 | 25x65 | M10 | 564 | 3D |
| 6108015 | VR2A/200-M | 200 | 62 | 154 | 25 | 26 | 40 | Ø6 | 32 | 16 | 44 | 28x85 | M10 | 1110 | 3D |
| 6108020 | VR2A/250-M | 250 | 70 | 162 | 28 | 30 | 48 | Ø6 | 41 | 17 | 49 | 28x85 | M10 | 1690 | 3D |
NOTE:
Special inch and metric bores, keyways, set screw holes, ect. available upon request.
