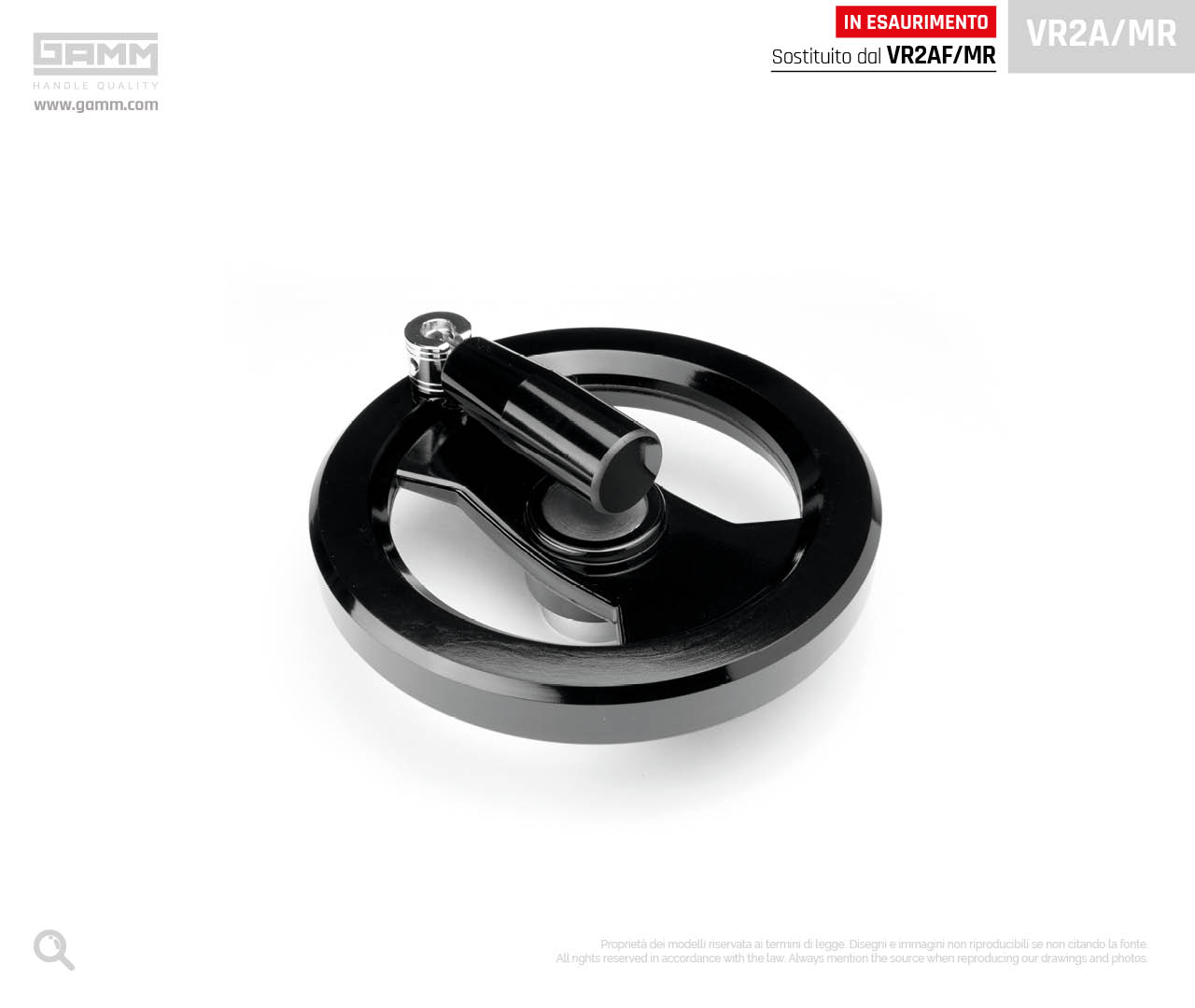

VR2A MR prodotto volantini di manovra GAMM

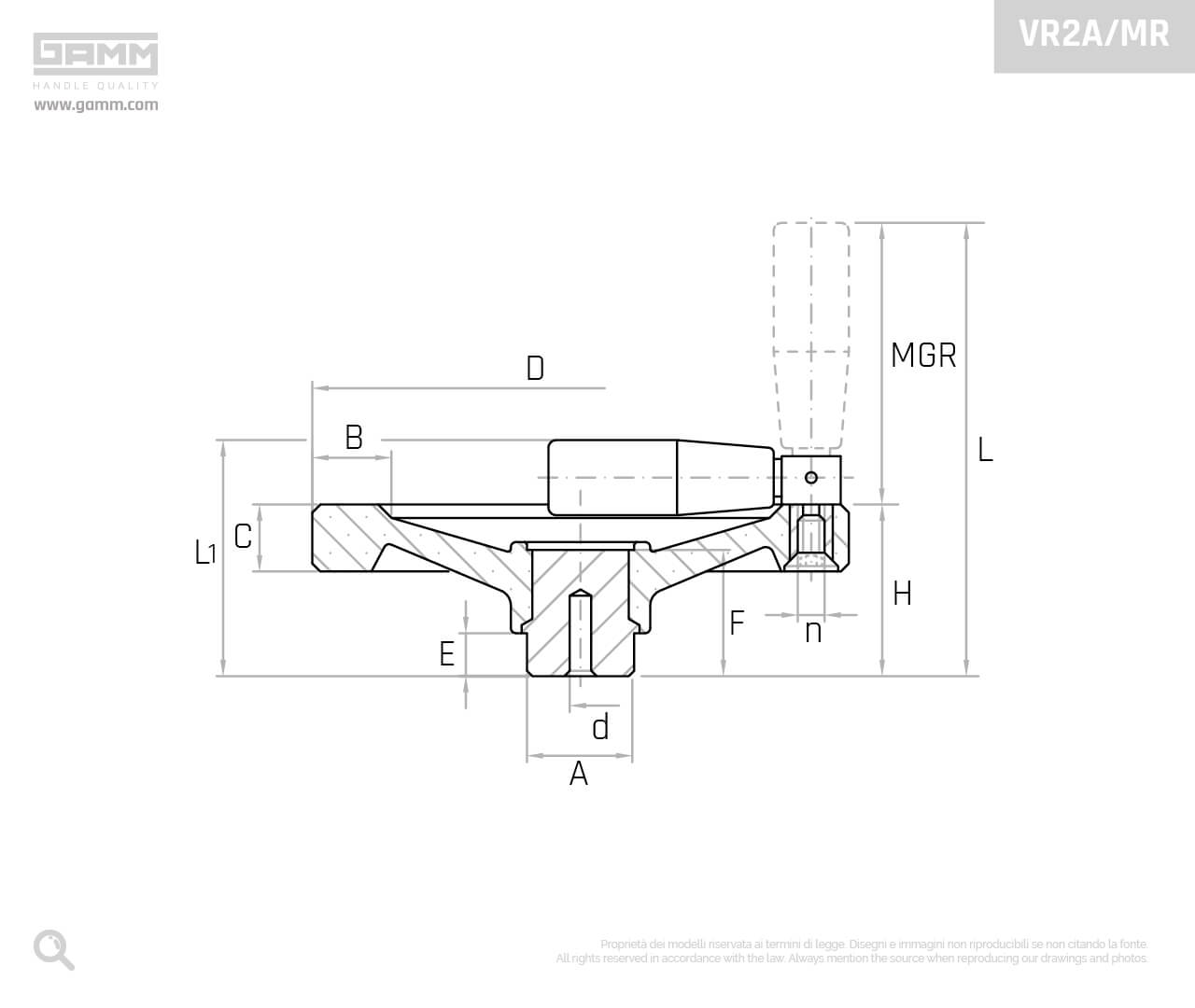

VR2A MR disegno volantini di manovra GAMM
Cod.ModelloD
mm
H
mm
L
mm
L1
mm
C
mm
B
mm
A
mm
d
mm
E
mm
F
mm
MCG
mm
NPeso
gr
3D
6155002VR2A/125-MR1254111261161824Ø4113323x55M5330 3D
6155005VR2A/150-MR1504612867202132Ø6133725x65M6558 3D
6155010VR2A/200-MR2006216786252640Ø6164428x85M61050 3D
6155015VR2A/250-MR2507017594283048Ø6174928x85M61630 3D

NOTE:
Special inch and metric bores, keyways, set screw holes, ect. available upon request.

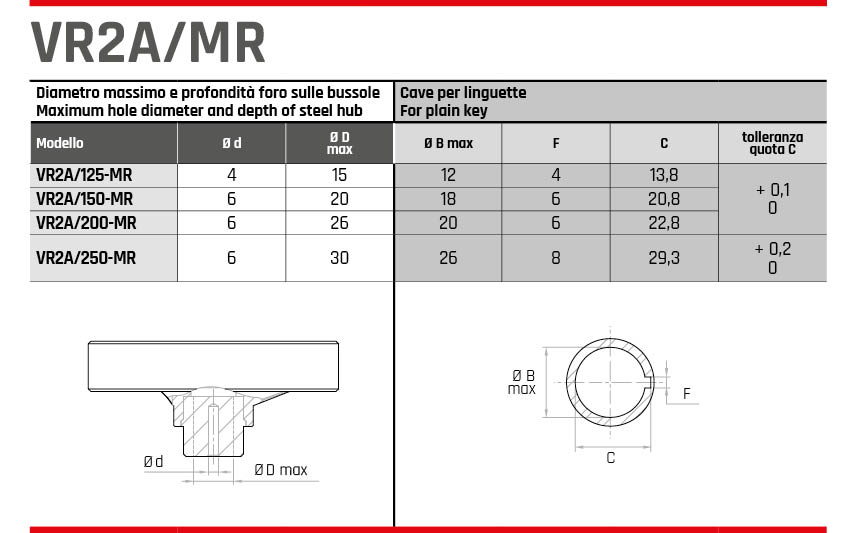

VR2A MR diametro massimo volantini GAMM

Request a quote

Do you need to receive more information about our products?
Fill out the form, our representative will answer you as soon as possible.
